GFEVT750-10R High Speed Fuse 10A-50A 750V700Vdc

[附件: Download]

Dimensions (mm)

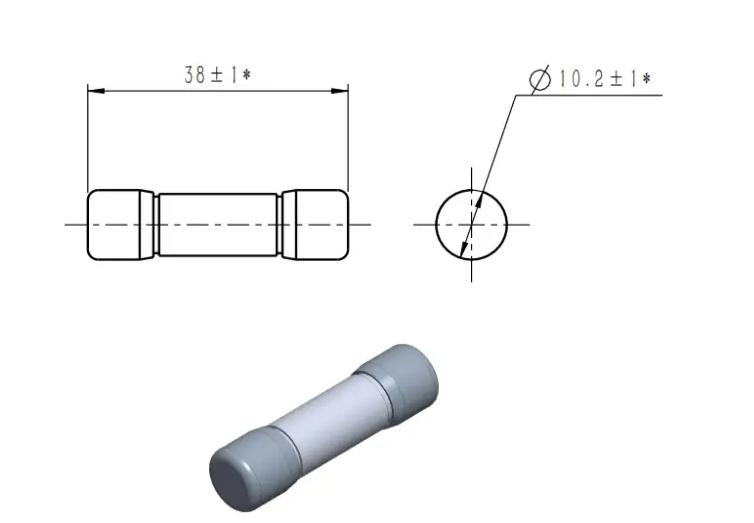

Ferrule xxA-10R Dimensions

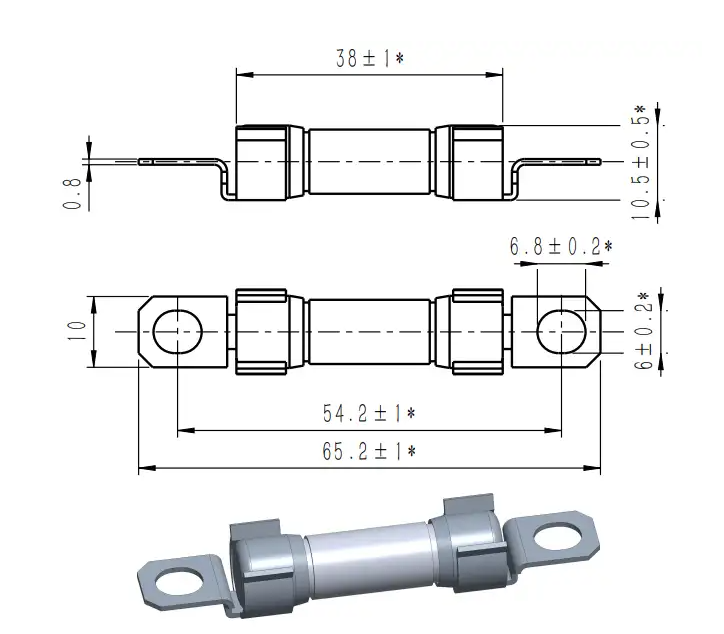

Axial boltxxAP-10R Dimensions

Description



  • Low watt losses
  • Designed for DC applications
  • Excellent DC performance
  • Superior cycling capability

Standards & Approvals

  • Refer to:
    • UL 248.13 / UL 248.20
    • IEC 60269.1 / IEC 60269.4
    • GB 13539.1 / GB 13539.4
    • JASO D622
  • Manufactured under an IATF16949 quality system for compliance with automotive requirements
  • Reach declaration available upon request
  • RoHS compliant

Features & Benefits

  • Higher voltage rating provides overall system efficiency using smaller, more economical conductors while meeting the needs of higher voltage
  • Up to ten times faster opening under high fault current conditions ensures reliable protection of circuits and components
  • Can be applied in parallel to realize greater ampacity within sizing guidelines
  • Excellent resistance to voltaic impingement and environmental temperature variations
  • Exceptional resistance to mechanical vibration and impact resistance.

Fuse Ratings

Connect Part No. Fuse

Amps

Body Breaking Capacity Average @ 20KA/750Vdc Power Loss 1.0(W) Approvals
A²s Melting A²s Clearing UL
Ferrule GFEVT750-10A-10R 10A Ceramics 20 kA 28.9 97.0 2.0 ○ Pending
GFEVT750-15A-10R 15A Ceramics 20 kA 72.3 242.5 2.5 ○ Pending
GFEVT750-20A-10R 20A Ceramics 20 kA 145.5 440.0 3.2 ○ Pending
GFEVT750-25A-10R 25A Ceramics 20 kA 225.0 668.0 3.6 ○ Pending
GFEVT750-30A-10R 30A Ceramics 20 kA 311.3 942.0 4.5 ○ Pending
GFEVT750-32A-10R 32A Ceramics 20 kA 356.3 996.0 5.5 ○ Pending
GFEVF750-40A-10R *40A Fiberglass 20 kA 439.6 1605.0 6.5 ○ Pending
GFEVF750-50A-10R *50A Fiberglass 20 kA 683.2 3048.5 8.5 ○ Pending
Connect Part No. Fuse

Amps

Body Breaking Capacity Average @ 20KA/750Vdc Power Loss 1.0(W) Approvals
A²s Melting A²s Clearing UL
Axial bolt GFEVT750-10AP-10R 10A Ceramics 20 kA 28.9 97.0 2.0 ○ Pending
GFEVT750-15AP-10R 15A Ceramics 20 kA 72.3 242.5 2.5 ○ Pending
GFEVT750-20AP-10R 20A Ceramics 20 kA 145.5 440.0 3.2 ○ Pending
GFEVT750-25AP-10R 25A Ceramics 20 kA 225.0 668.0 3.6 ○ Pending
GFEVT750-30AP-10R 30A Ceramics 20 kA 311.3 942.0 4.5 ○ Pending
GFEVT750-32AP-10R 32A Ceramics 20 kA 356.3 996.0 5.5 ○ Pending
GFEVF750-40AP-10R *40A Fiberglass 20 kA 439.6 1605.0 6.5 ○ Pending
GFEVF750-50AP-10R *50A Fiberglass 20 kA 683.2 3048.5 8.5 ○ Pending
  • DC Cold Resistance is measured at <10% of the rated current in an ambient temperature of 25℃；
